CHM-650

Product time:2021-11-23 09:15:07

Description:

CHM-650 is a high-speed and good-performance pick and place machine.

Details
CHM-650 Introduction

This is CHM-650, a high-speed and good-performance pick and place machine of Hunan Charmhigh Electromechanical Equipment Co., Ltd.



CHM-650 Pick and Place Machine is characterized by 50 feeder stacks, 4 heads capable of 360-degree rotation,

support for Yamaha pneumatic feeders ,stick feeders with tubular components, automatic correction to pick components,

 integrated operation with built-in industrial computer.



CHM-650 Parameters

Support 10000CPH and 50 Yamaha  SMT pick and place machine CHM-650 made in China from Charmhigh

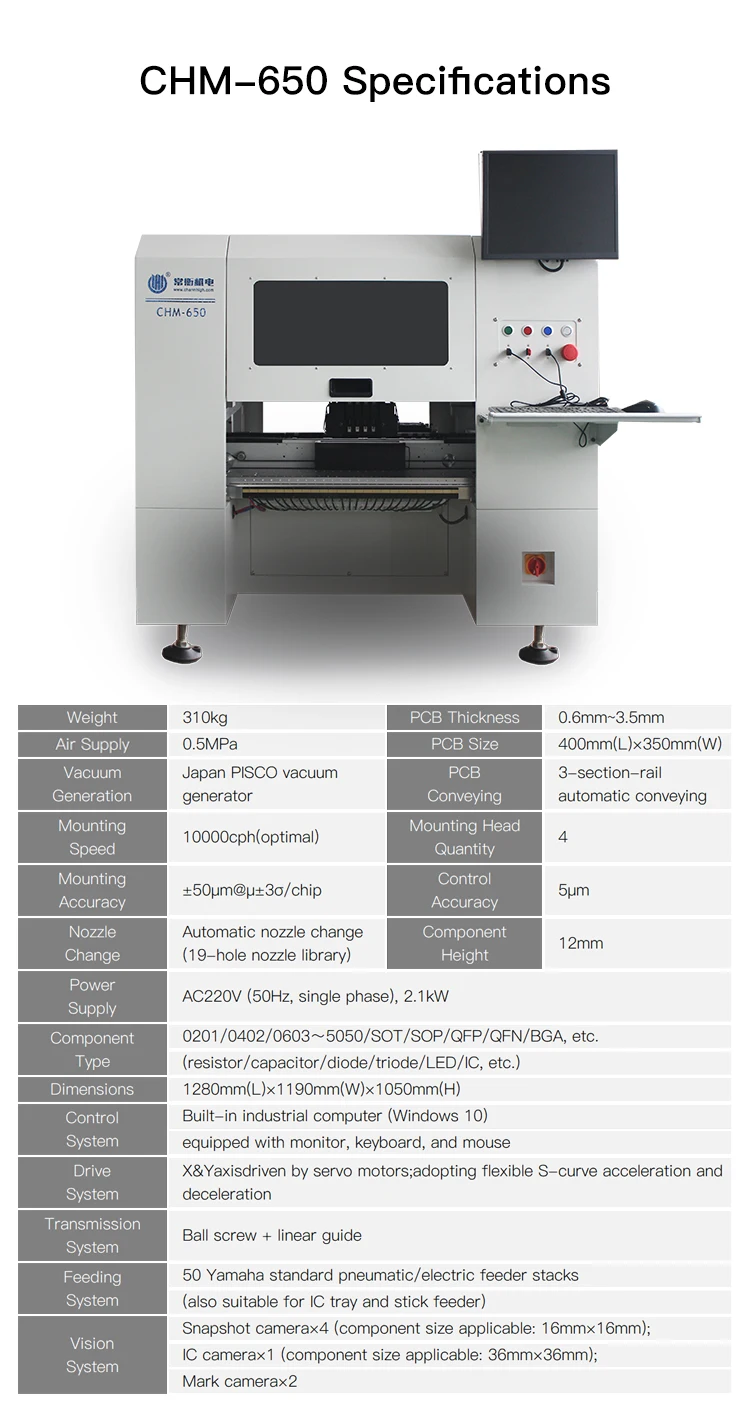

CHM-650 Specifications
 Dimensions1280mm(L)×1190mm(W)×1050mm(H)
 Weight310kg
 Power SupplyAC220V (50Hz, single phase), 2.1kW
 Air Supply0.5MPa ~0.7MPa
 Vacuum GenerationVacuum generator
 Mounting Head Quantity4
 Mounting Speed10000cph(optimal)
 Mounting Accuracy±50μm@μ±3σ/chip
 Control Accuracy5μm
 Component Height12mm
 Component Type

0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc.

(resistor/capacitor/diode/triode/LED/IC, etc.)

 PCB Thickness0.6mm~3.5mm
 PCB Size400mm(L)×350mm(W)
 PCB Conveying3-section-rail automatic conveying
 Nozzle ChangeAutomatic nozzle change (19-hole nozzle library)
 Control System

Built-in industrial computer (Windows 7)

equipped with monitor, keyboard, and mouse

 Drive SystemX&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration
 Transmission SystemBall screw + linear guide
 Feeding System

50 Yamaha 8mm standard pneumatic/electric feeder stacks

(also suitable for IC tray and stick feeder)

 Vision System

Snapshot camera×4 (component size applicable: 16mm×16mm);

IC camera×1 (component size applicable: 36mm×36mm);

Mark camera×2
