Location: Home > Product > Vertical

CHM-751

Product time:2021-12-17 10:55:50

Description:

CHM-751 has push pin to support PCB while placement, avoiding deformation of the PCB, especially the panels.

Details

CHM-751 Specifications

Dimensions

1280mm(L)×1190mm(W)×1470mm(H)

Weight

520kg

Power Supply

AC220V (50Hz, single phase), 2.8kW

Air Supply

0.5MPa ~0.7MPa

Vacuum Generation

Vacuum generator

Mounting Head Quantity

6

Mounting Speed

13000cphoptimal

Mounting Accuracy

±50μm@μ±3σ/chip

Control Accuracy

5μm

Component Height

12mm

Component Type

0201/0402/06035050/SOT/SOP/QFP/QFN/BGA, etc.

(resistor/capacitor/diode/triode/LED/IC, etc.)

PCB Thickness

0.6mm3.5mm

PCB size

400mm(L)×350mm(W)

PCB Conveying

3-section-rail automatic conveying; PCB supporting device

Nozzle Change

Automatic nozzle change (19-hole nozzle library)

Control System

Built-in industrial computer (Windows 7)

equipped with monitor, keyboard, and mouse

Drive system

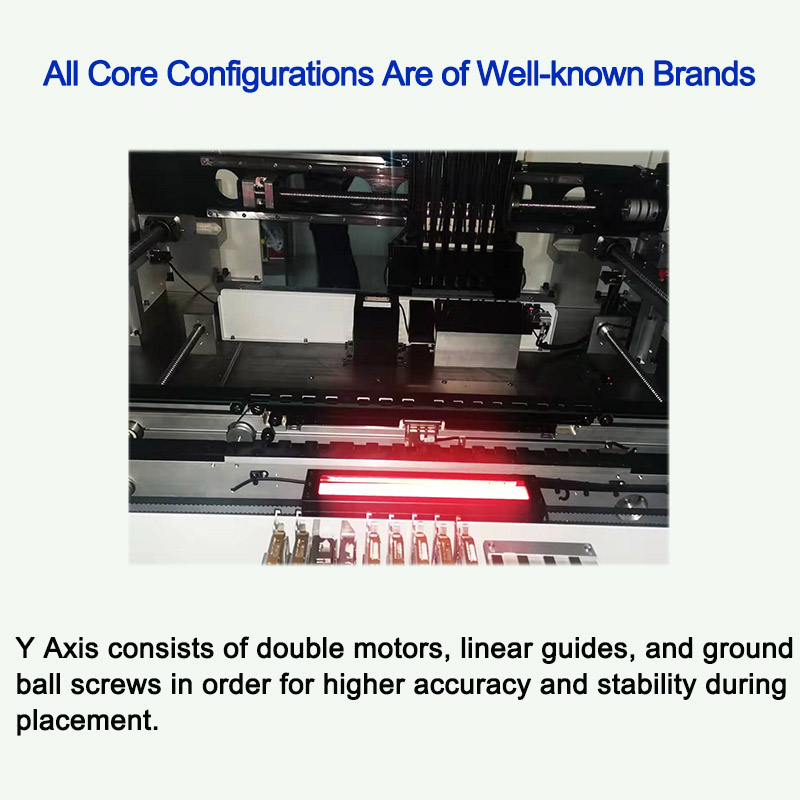

X&Y axis driven by servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration

Transmission System

Ground screw rod +linear guide (Y axis using double screw rods +double linear guides)

Feeding System

50 Yamaha 8mm standard pneumatic/electric feeder stacks

(also suitable for IC tray and stick feeder)

Vision System

Snapshot camera×6 (component size applicable: 16mm×16mm);

IC camera×1 (component size applicable: 36mm×36mm);

Mark camera×2


CHM-751(图1)

CHM-751(图2)

CHM-751(图3)

CHM-751(图4)

CHM-751(图5)

CHM-751(图6)

CHM-751(图7)

CHM-751(图8)

CHM-751(图9)
