SMT Patch Processing Full Process Analysis and Quality Control

SMT patch processing is a crucial process in the field of electronic manufacturing, encompassing the entire production flow from printing to inspection. Here, Charmhigh Electromechanical would like to discuss the fundamental process composition of SMT patch processing. Interested friends, let's take a look together.

Silkscreen printing or dispensing is the first step in SMT patch processing. In this step, solder paste or adhesive is precisely printed onto the pads of the PCB board, laying a solid foundation for the subsequent welding of components. As the core equipment in this step, the silkscreen printer ensures the uniformity and accuracy of the solder paste.

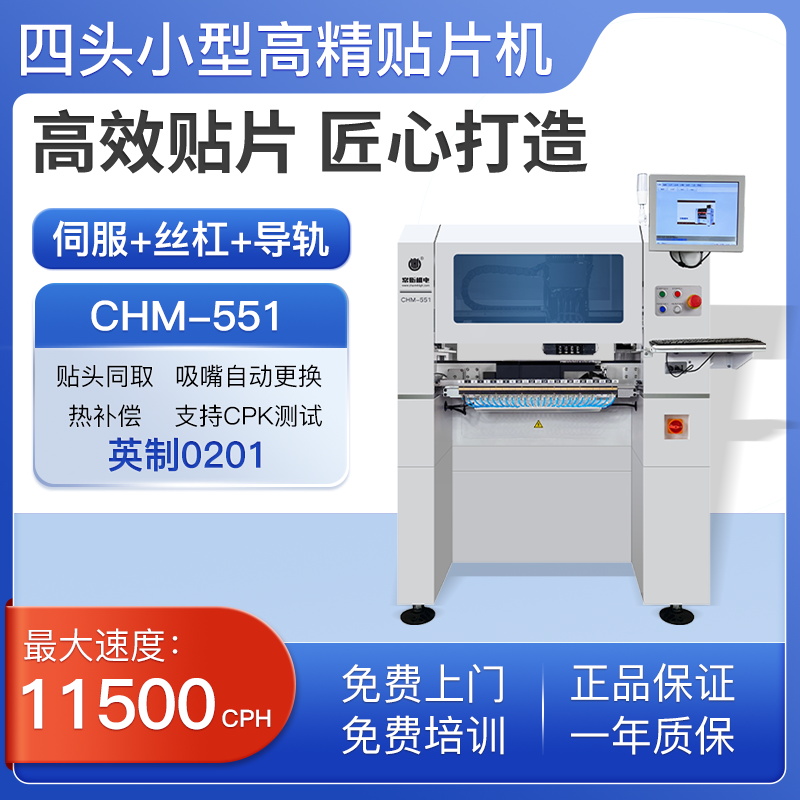

Next comes the placement step, where the placement machine accurately installs various components onto the PCB board according to preset coordinate positions. The accuracy and speed of the placement machine directly affect the efficiency of the entire production line.

After placement, the solder paste needs to be melted through reflow soldering technology to achieve a firm connection between the components and the PCB board. The reflow oven is the key equipment in this step, and its temperature control and heating uniformity are crucial for welding quality.

After soldering, the cleaning step removes residues from the PCB board to ensure the cleanliness and reliability of the product. The use of cleaning machines can be configured according to the specific needs of the production line.

The inspection step is crucial for ensuring product quality. Through devices such as magnifying glasses, microscopes, and online testers, the welding quality and installation quality of the PCB board can be comprehensively inspected. At the same time, the repair workstation also provides timely solutions for possible quality issues.

The fundamental process composition of SMT patch processing covers the entire production flow from silkscreen printing to inspection, with each step being crucial to ensuring the quality and reliability of the product.
