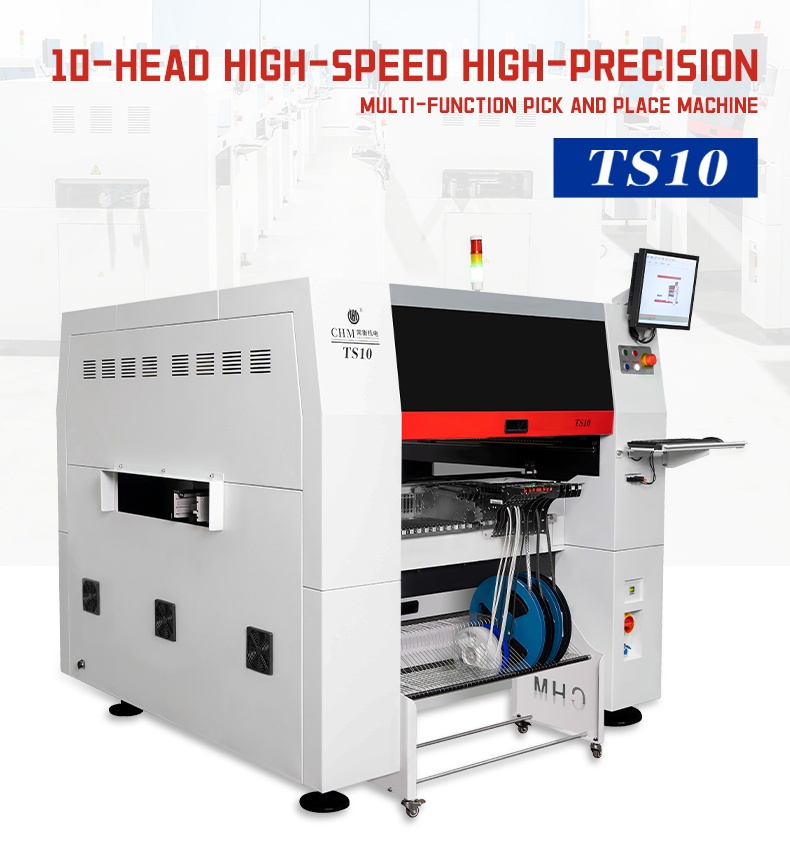

CHM-TS10

Dimensions

1600mm(L)×1688mm(W)×1560mm(H)

Weight

1930kg

Power Supply

AC380V   (50Hz, three phase), 4.5kW

Air Supply

0.5MPa ~0.7MPa

Vacuum Generation

Built-in   vacuum pump

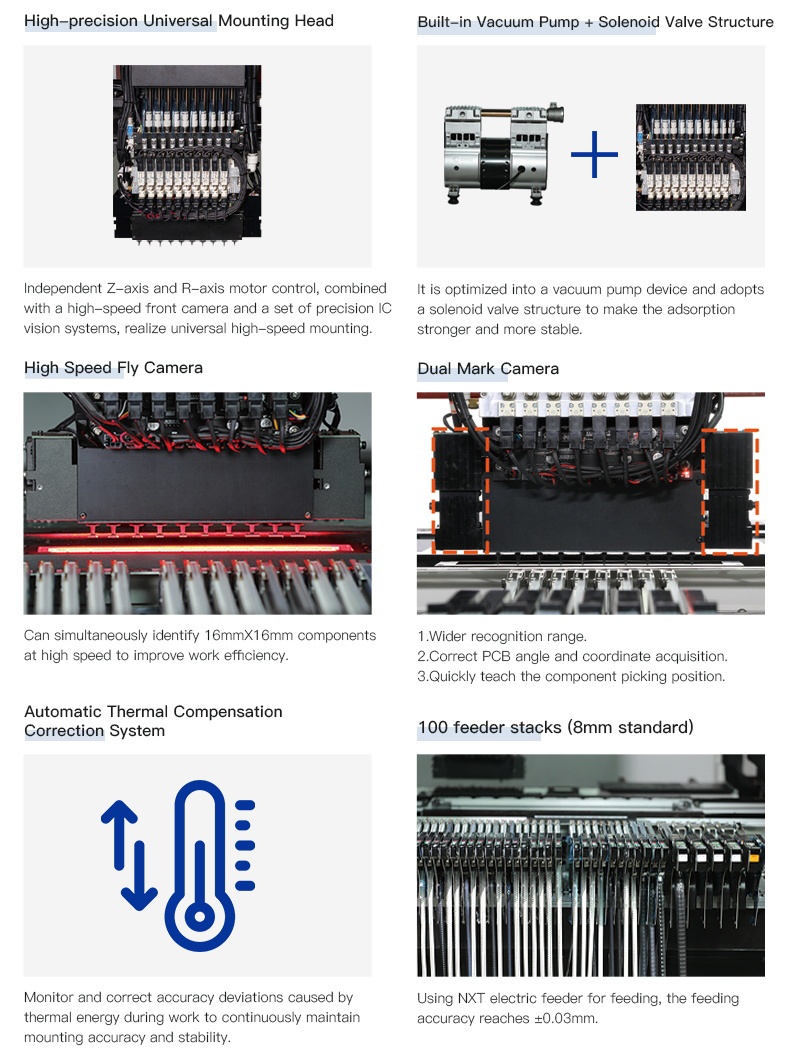

Mounting Head Quantity

10

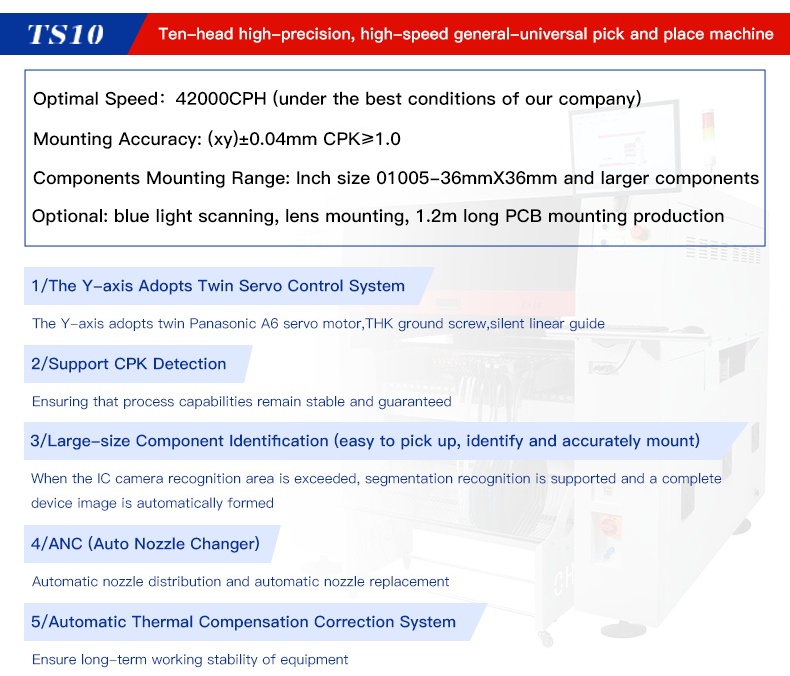

Mounting Speed

42000cph   (optimal)

Mounting Accuracy

（XY）±0.04mm  CPK≥1.0

Component Height

≤12mm

Component Type

01005/0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.

(resistor/capacitor/diode/triode/LED/IC,   etc.)

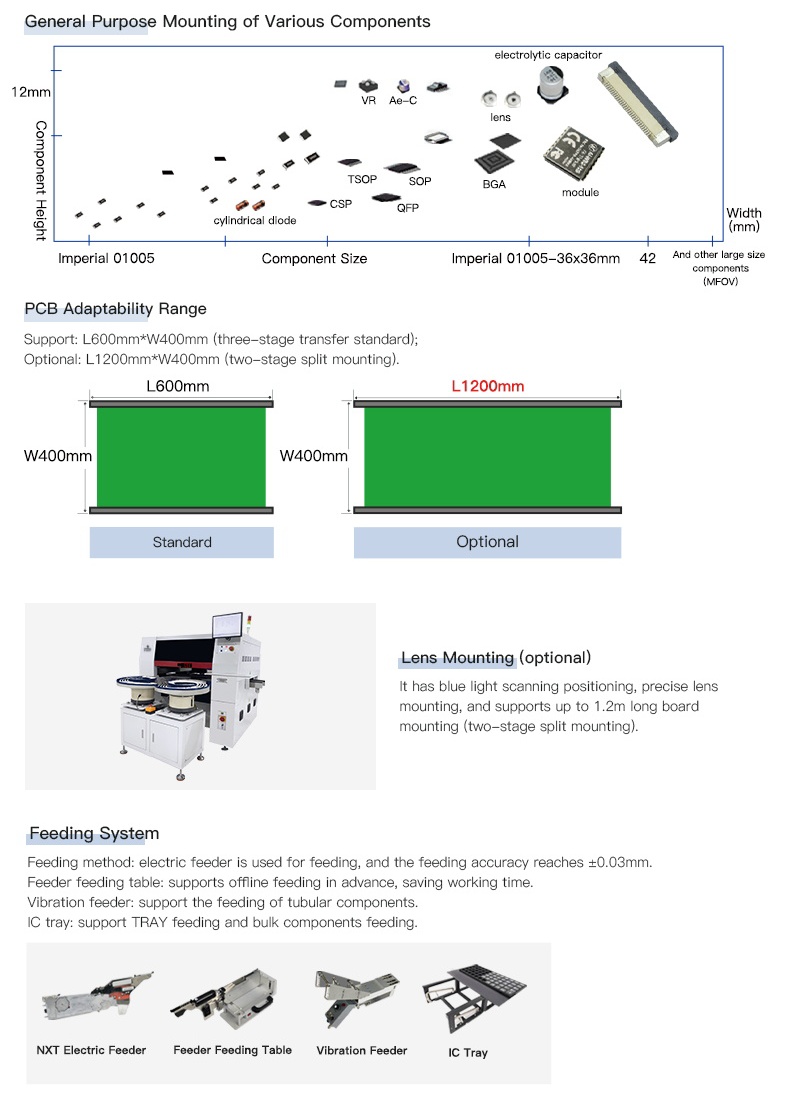

Component Range

Inch   size 0201 to 36mm*36mm, and larger components mounting.

PCB Thickness

0.6mm~3.5mm

PCB Size

600mm(L)×400mm(W)   (standard);

1200mm(L)×400mm(W)   (optional)

PCB Conveying

3-section-rail   automatic conveying, PCB support

Nozzle Change

Automatic   nozzle change (37-hole nozzle library)

Control System

Built-in   industrial computer (Windows 7)

equipped   with monitor, keyboard, and mouse

Drive System

X&Y   axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting   flexible S-curve acceleration and deceleration

Transmission System

X&Y   axis adopting THK ground ball screw and THK mute linear guide (Y axis with   double screws)

Feeding System

100 NXT 8mm standard feeder stacks

(also suitable for IC tray and stick feeder)

Vision System

Fly   camera×10 (component size applicable: 16mm×16mm);

IC   camera×1 (component size applicable: 36mm×36mm);

It   has the function of image stitching

Mark   camera×2
